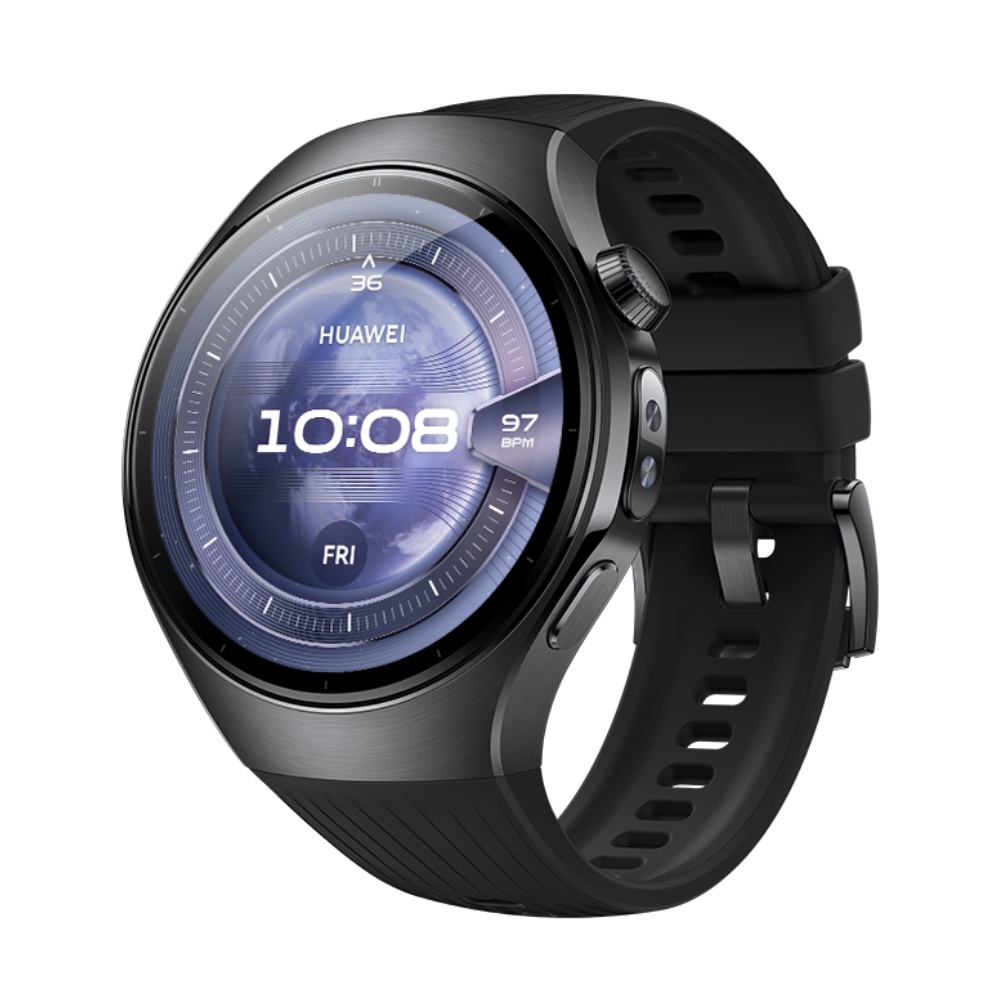

Huawei Watch 5 46mm

Specs

Dimensions

HUAWEI WATCH 5 46 mm

46 mm × 46.7 mm × 11.3 mm

Wrist Size

HUAWEI WATCH 5 46 mm

140-210 mm

Watch Strap

HUAWEI WATCH 5 46 mm

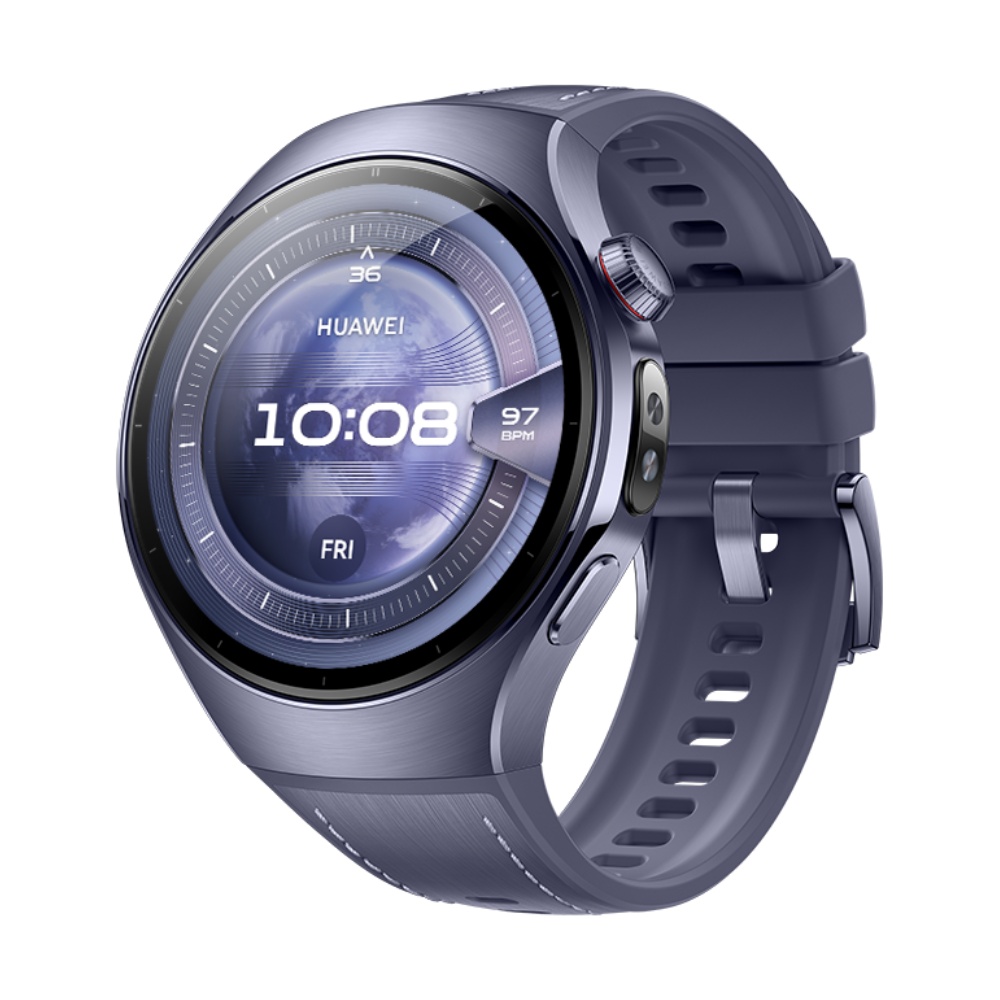

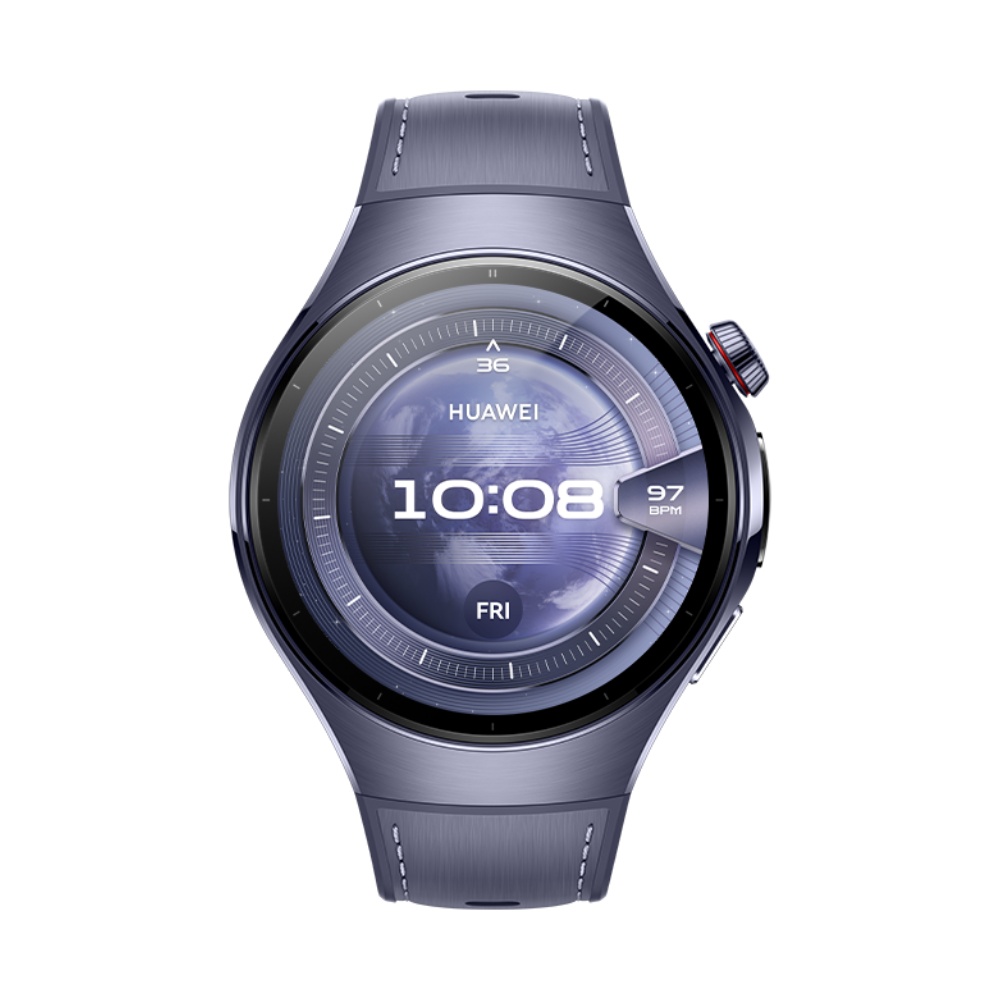

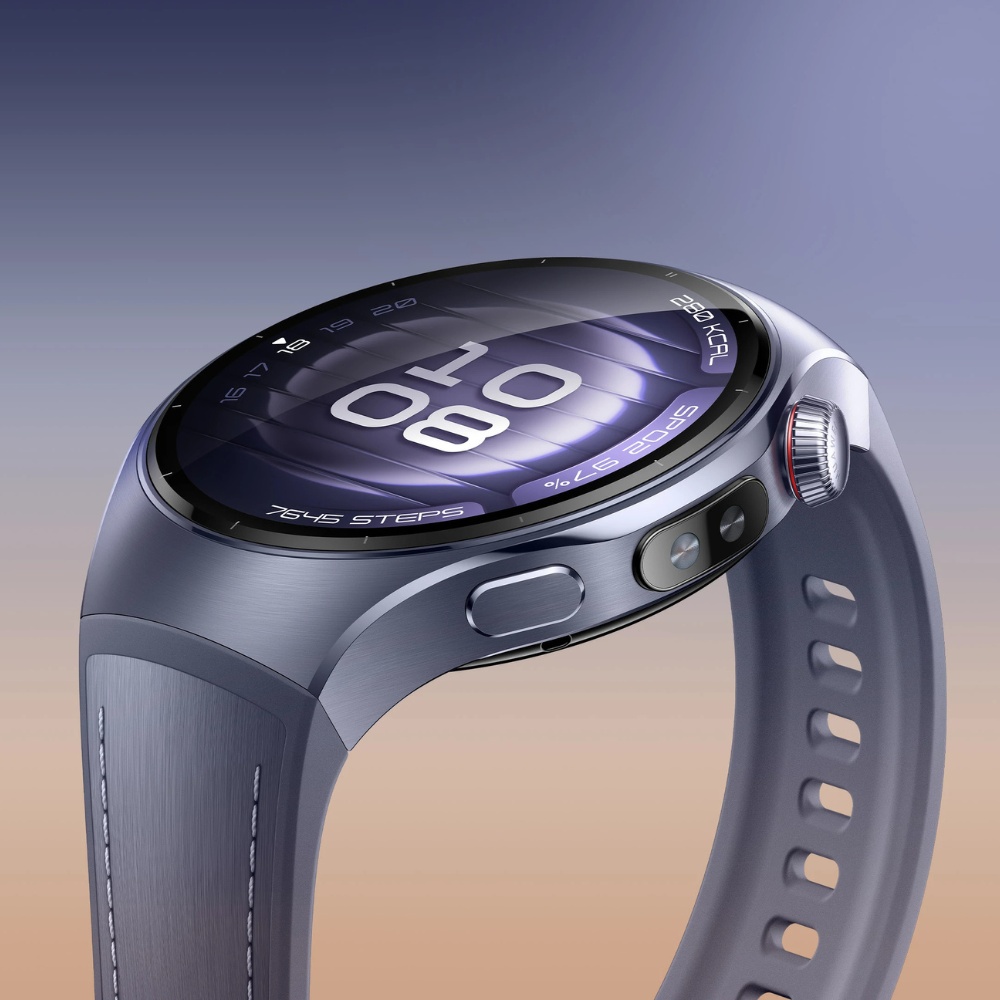

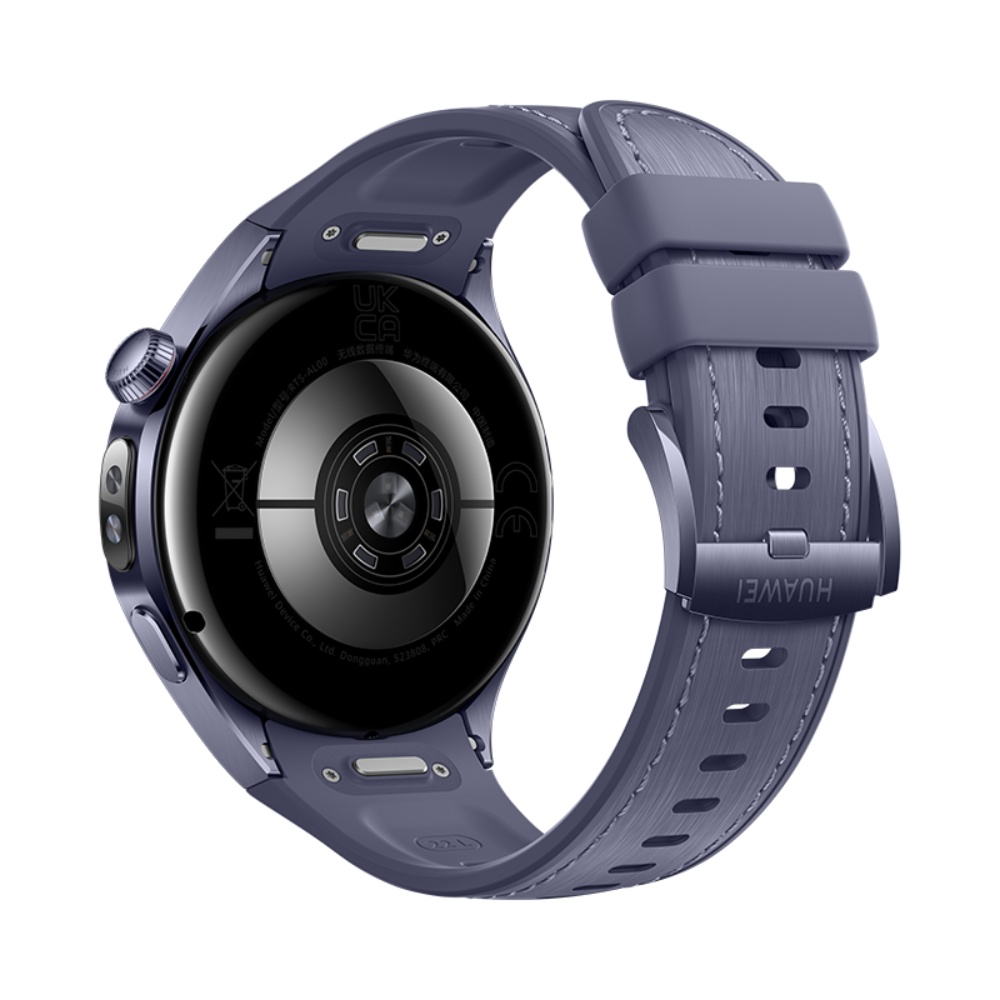

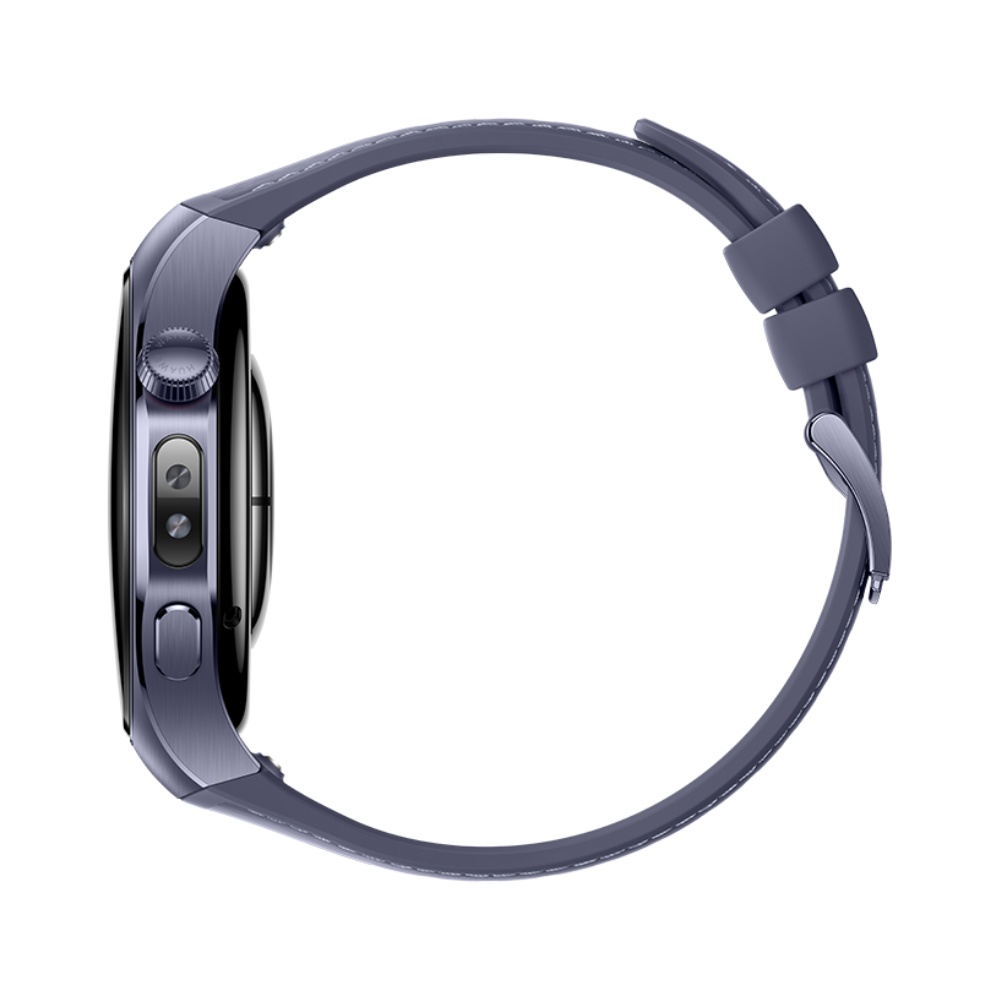

• Purple composite strap

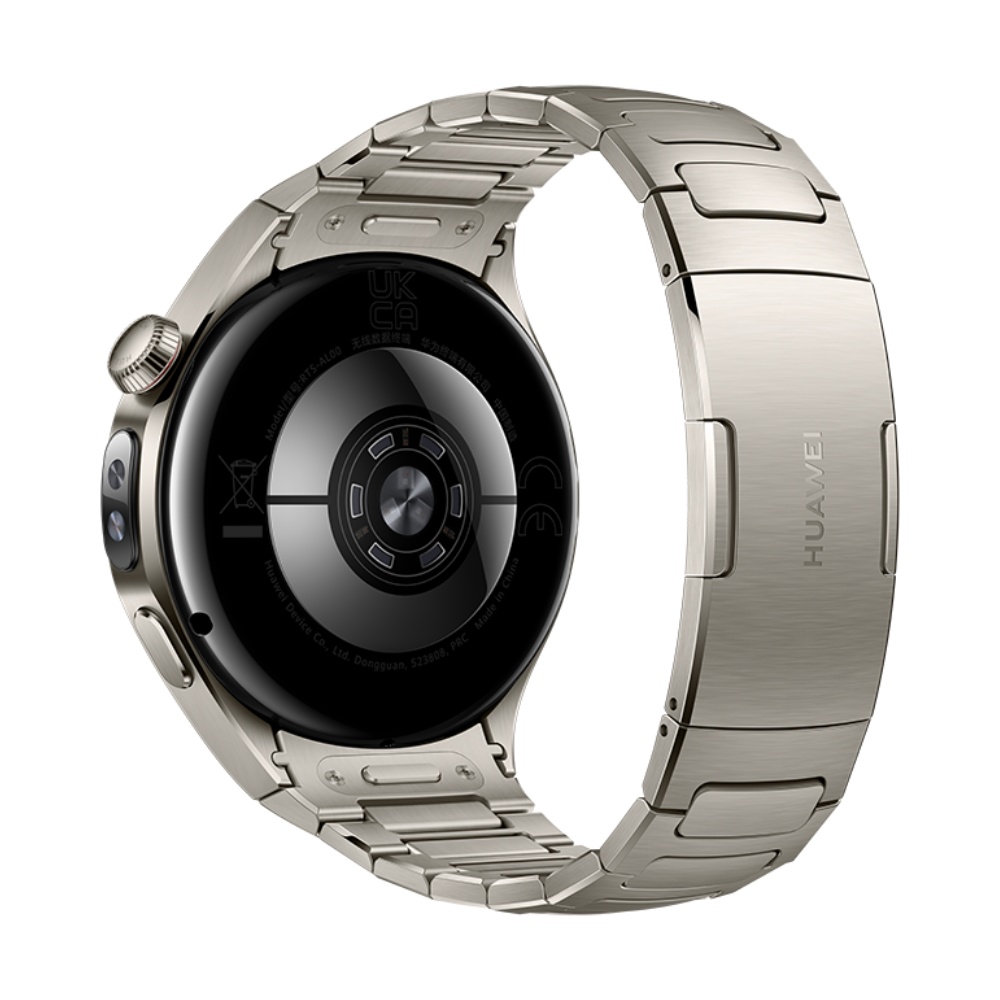

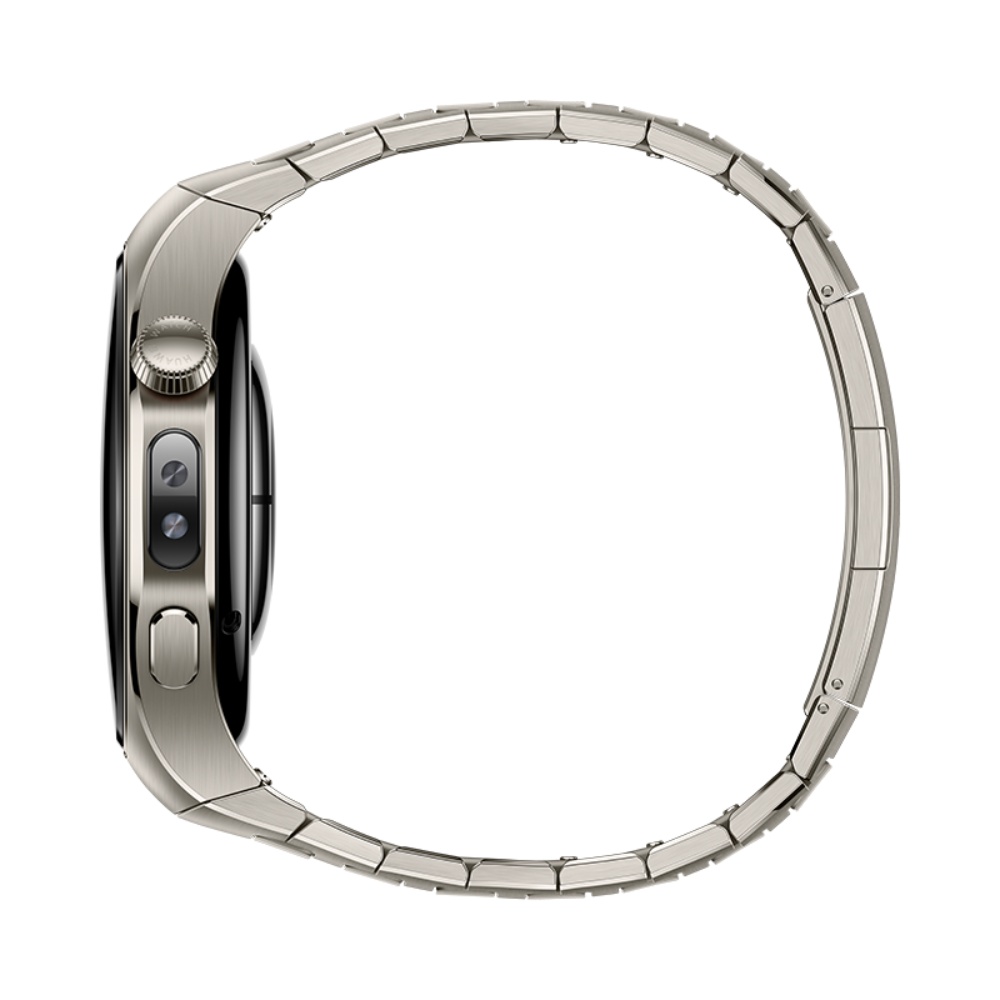

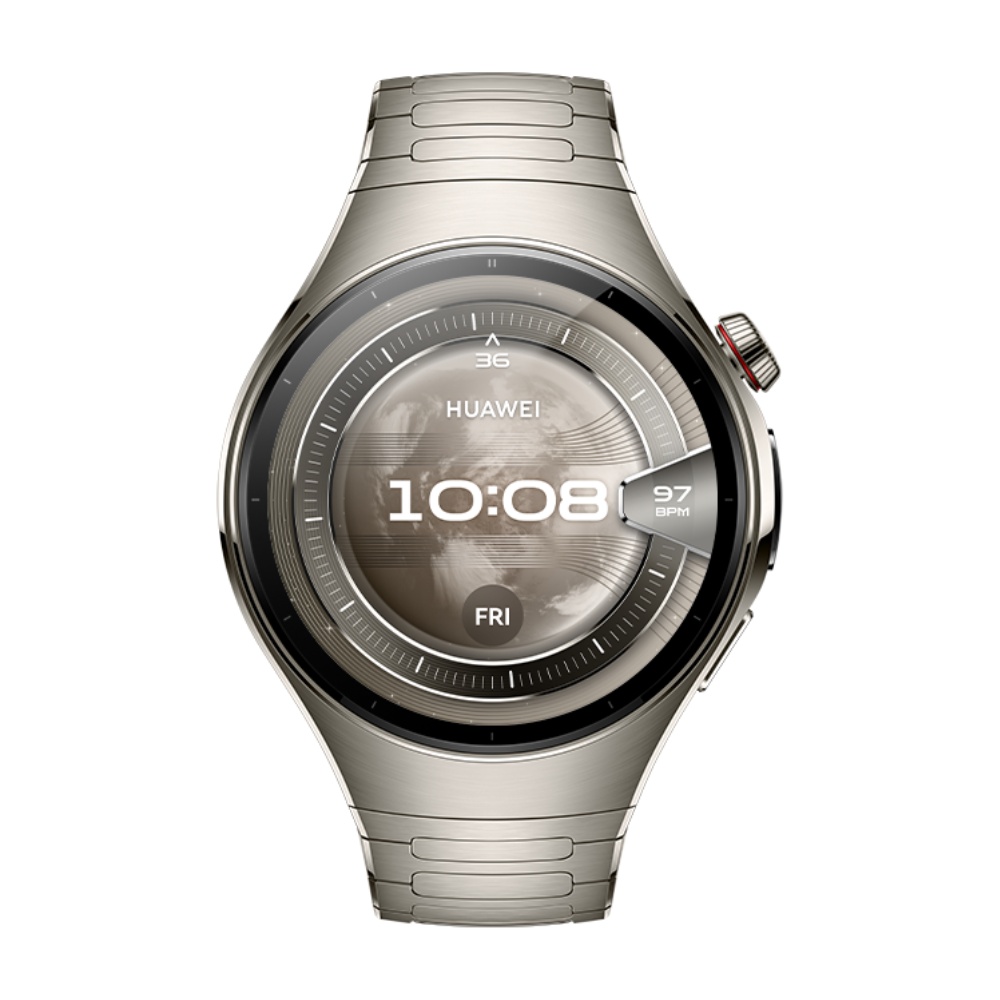

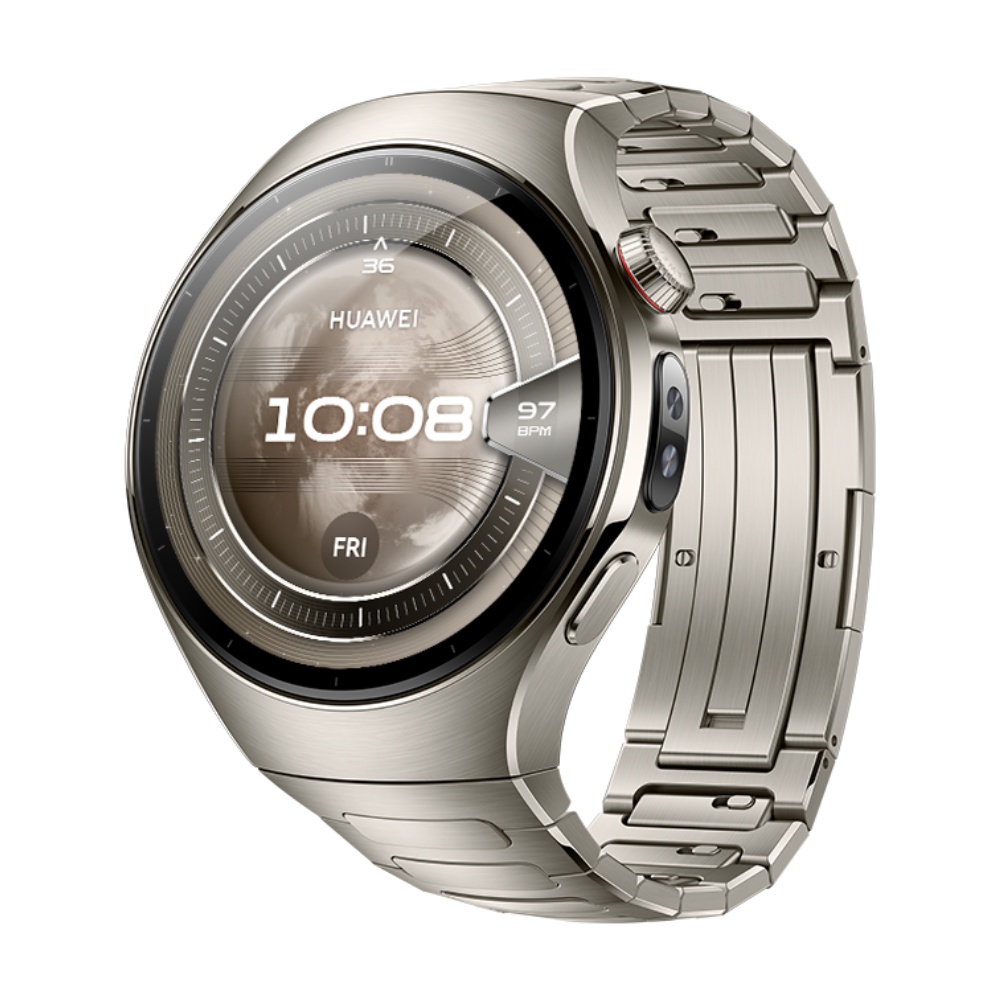

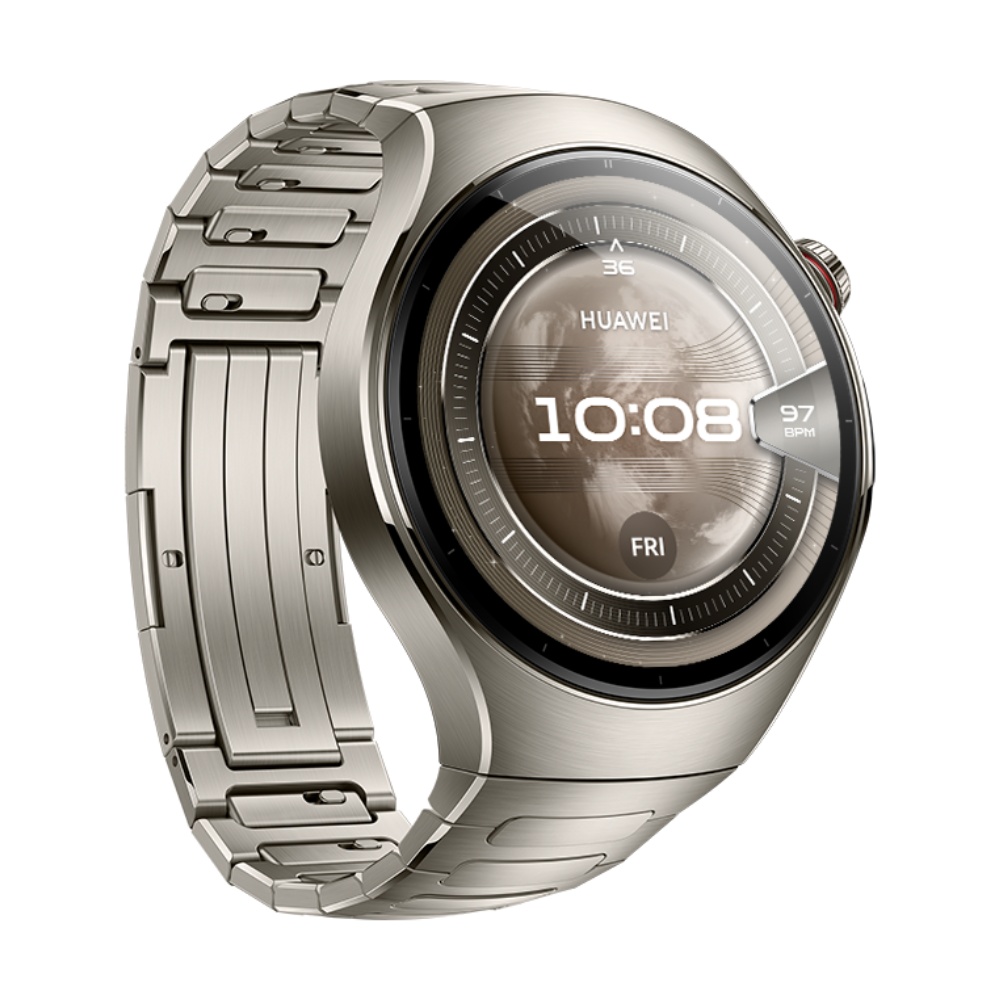

• Silver titanium strap
• Brown composite strap
• Blue composite strap

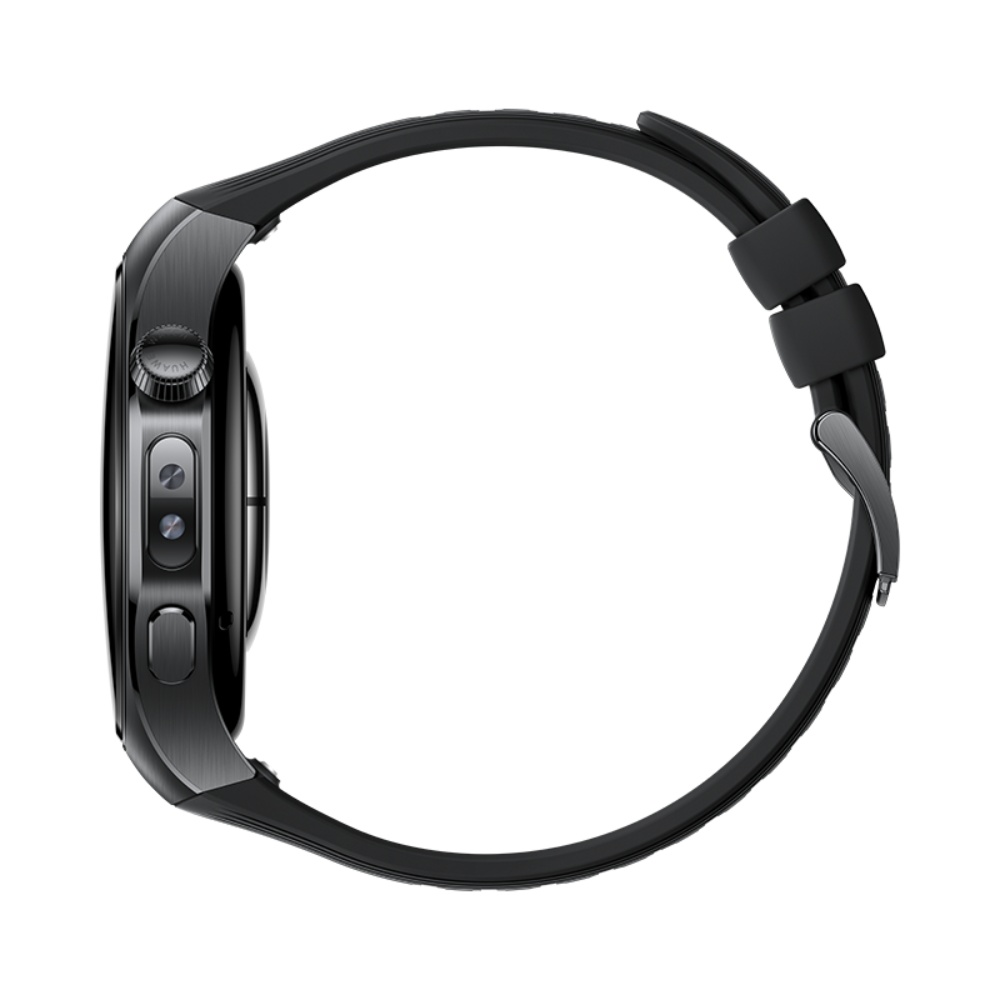

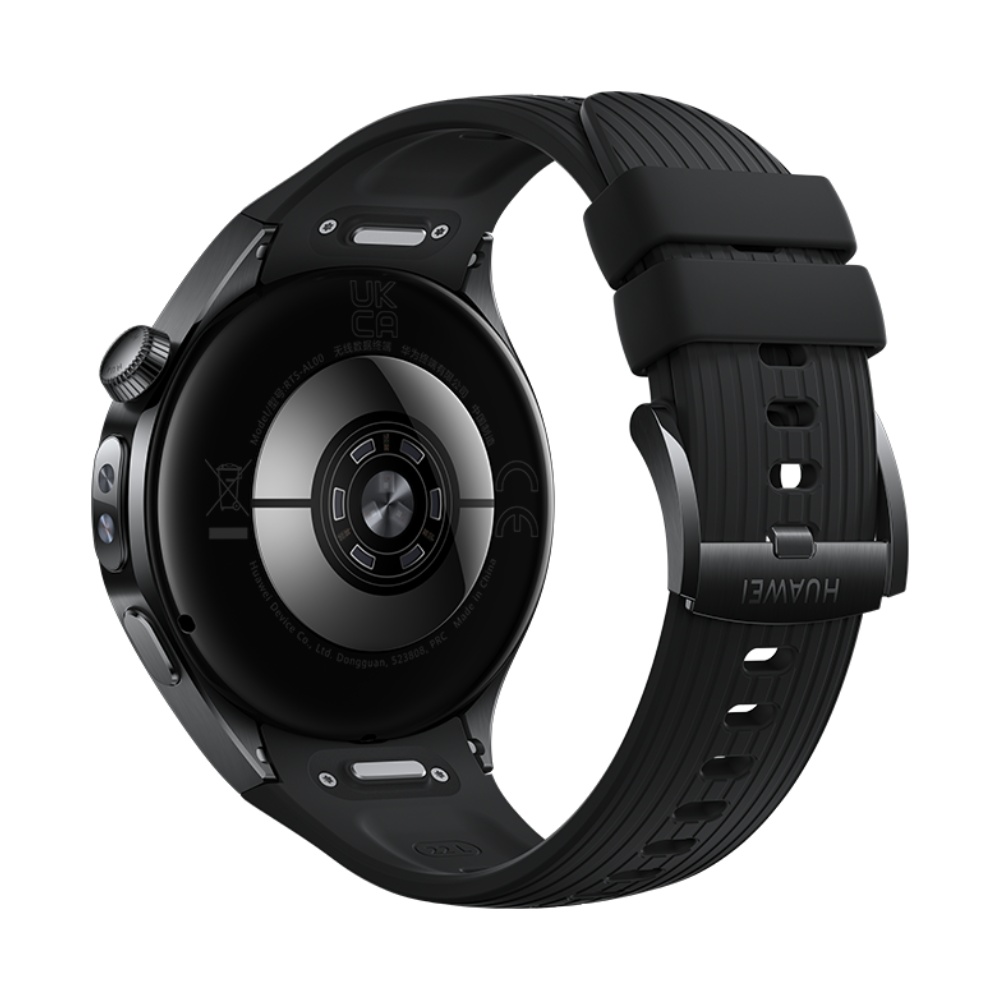

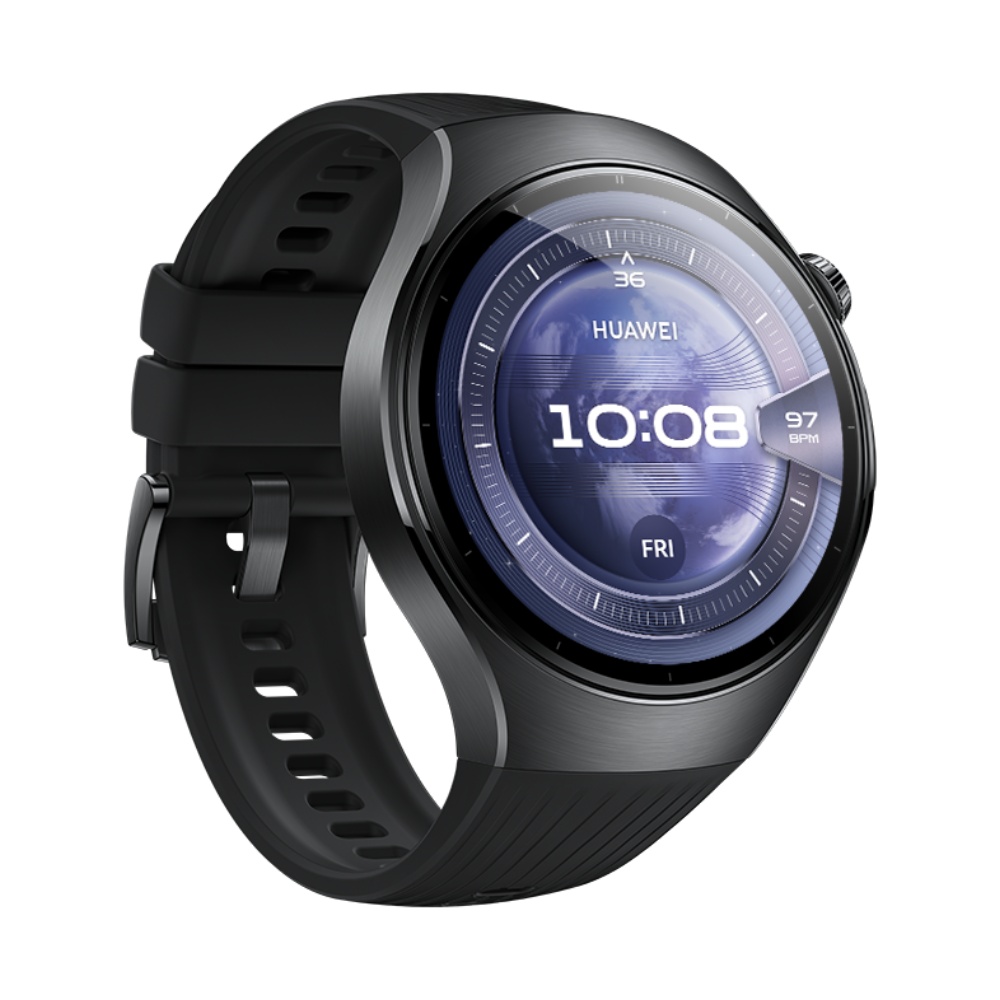

• Black fluoroelastomer strap

Weight

HUAWEI WATCH 5 46 mm

Purple, Silver, Brown

Approx. 58 g (excluding the strap)

Blue, Black

Approx. 63 g (excluding the strap)

Display

HUAWEI WATCH 5 46 mm

Size

1.5 inches LTPO 2.0 AMOLED color screen

Resolution

466 × 466 pixels, PPI 310

Brightness

3000-nit peak brightness

Watch Case

HUAWEI WATCH 5 46 mm

Material

Purple, Silver, Brown

Aerospace-grade titanium

Blue, Black

316L stainless steel

Sensors

Acceleration sensor

Gyroscope sensor

Compass sensor

Optical heart rate sensor 6.0

Barometer sensor

Ambient light sensor

Body temperature sensor

ECG sensor

Depth sensor

Tactile Sensor

Button

Up button (Rotating Crown) + Down button + HUAWEI X-TAP

Charging Port

Wireless charging

System Requirements

Android 9.0 or later, iOS 13.0 or later

Waterproof Level 5 ATM: This product complies with 5 ATM-rated water resistance under the ISO 22810:2010 standard, which indicates that the device can withstand up to 50 meters of static water pressure for 10 minutes, but does not mean that the product is water-resistant in water that is 50-meter deep.

IP69: This product complies with the IP69-rated water resistance under the GB/T 4208-2017 standard. The IPX9 test conditions are as follows: water temperature: 80 ± 5℃; water flow: 15 ± 1 L/min; water pressure: 10,000 ± 500 kPa; spray angle: 0°, 30°, 60°, and 90°, 30 seconds for each angle. This does not indicate protection during hot water showers. The product complies with the EN13319 standard for diving accessories, supports freedives at depths of up to 40 meters, and can be worn during shallow water activities such as swimming in a pool or at the beach. Remember to clean and dry the device promptly after wearing it in water activities, remove water stains from all surfaces and holes, and use the device’s drainage feature to avoid undermining device performance.

The wearable device should not be worn in the following scenarios: (Damage to the device caused by immersion in liquid is not covered by the warranty if the device is worn in an inappropriate scenario.) 1. Hot showers, hot springs, saunas (steam rooms), and other activities in high-temperature and/or high-humidity environments. 2. Activities that could expose the device to shower gel, shampoo, soapy water, and any other laundry or cleaning products. If the device does come into contact with any such product, rinse and soak the device in fresh water for 30 minutes. 3. Scuba dives, technical dives, and diving activities at depths greater than 40 meters. 4. Composite vegan leather, composite woven, titanium, and ceramic straps are not designed for water activities (such as swimming) or to withstand sweat, and therefore it is recommended that other straps be used in such scenarios.

Connectivity

NFC Supported

Bluetooth

BT 5.2, BR + BLE

GNSS

L1: GPS + GLONASS + GALILEO + BeiDou + QZSS

L5: GPS + GALILEO + BeiDou + QZSS

WLAN

Wi-Fi 6: 2.4 GHz + 5 GHz, IEEE 802.11a/b/g/n/ac/ax 1 × 1

Speaker Supported

Microphone Supported

Environment

Operating temperature

0°C to 35°C

Storage temperature

–20°C to +55°C

Charging

Charger Voltage and Current Requirements

5V-10V DC/2A MAX

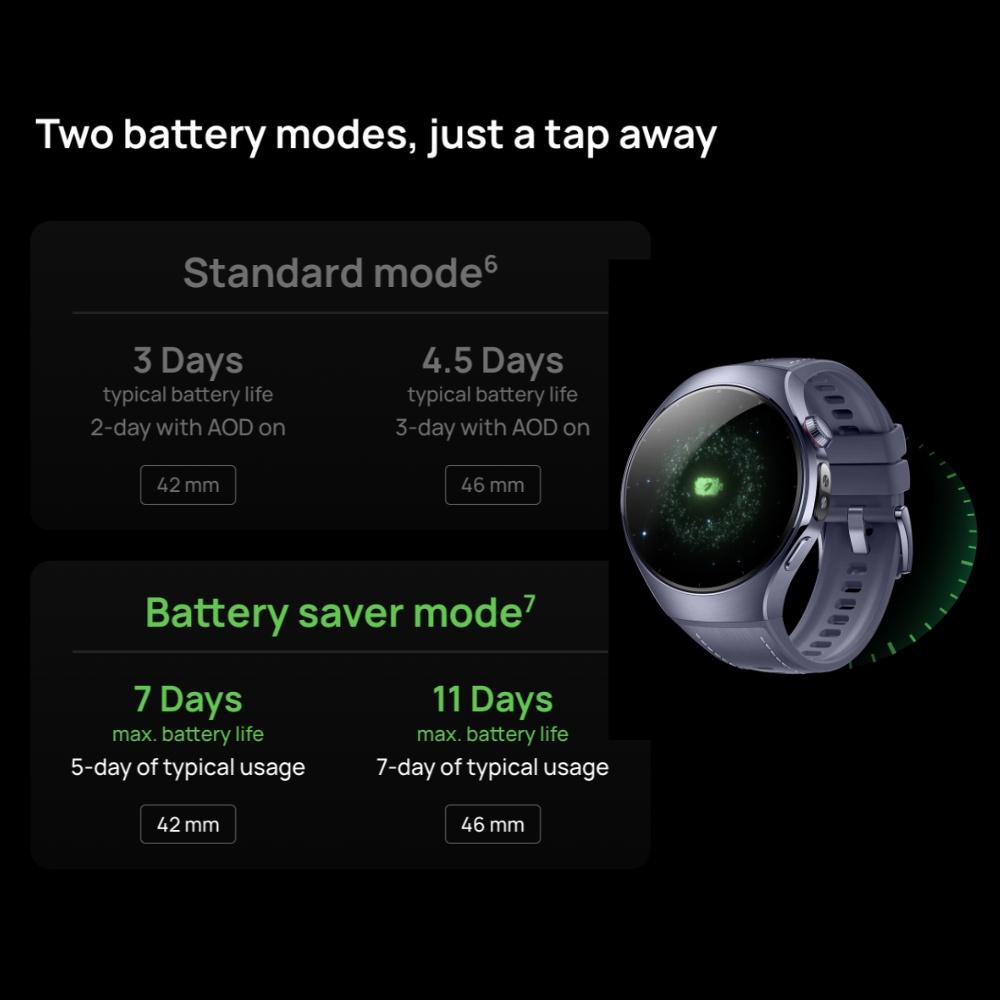

Battery Life

Standard mode:

4.5 days for typical usage; 3 days with AOD on

Battery saver mode:

11 days max. battery life; 7 days for typical usage; 4.5 days with AOD on

*HUAWEI WATCH 5 46 mm (under Standard mode): When paired with an iPhone, the battery can last for up to 3 days given typical usage or up to 2 days with AOD enabled.

*Based on results from Huawei lab tests. Actual usage may vary depending on discrepancies between different models, usage habits, and environmental factors.

The typical battery life under Standard mode is tested under the following conditions: factory default settings used, 2 hours of LTE connection and 22 hours of Bluetooth connection with a phone per day, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 2 ECG measurements per day, 60 minutes of app usage per week, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The battery life under Standard mode with AOD enabled is tested under the following conditions: factory default settings used, AOD enabled, 2 hours of LTE connection and 22 hours of Bluetooth connection with a phone per day, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 2 ECG measurements per day, 60 minutes of app usage per week, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The maximum battery life under Battery saver mode is tested under the following conditions: factory default settings used, Battery saver mode enabled, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The typical battery life under Battery saver mode is tested under the following conditions: factory default settings used, Battery saver mode enabled, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, stress monitoring enabled, pulse wave arrhythmia analysis and sleep apnoea features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

The battery life under Battery saver mode with AOD enabled is tested under the following conditions: factory default settings used, Battery saver mode enabled, AOD enabled, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, stress monitoring enabled, pulse wave arrhythmia analysis and sleep apnoea features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

In The Box

Watch × 1

HUAWEI WATCH Wireless SuperCharger (2nd generation) × 1

Quick Start Guide & Safety Information
