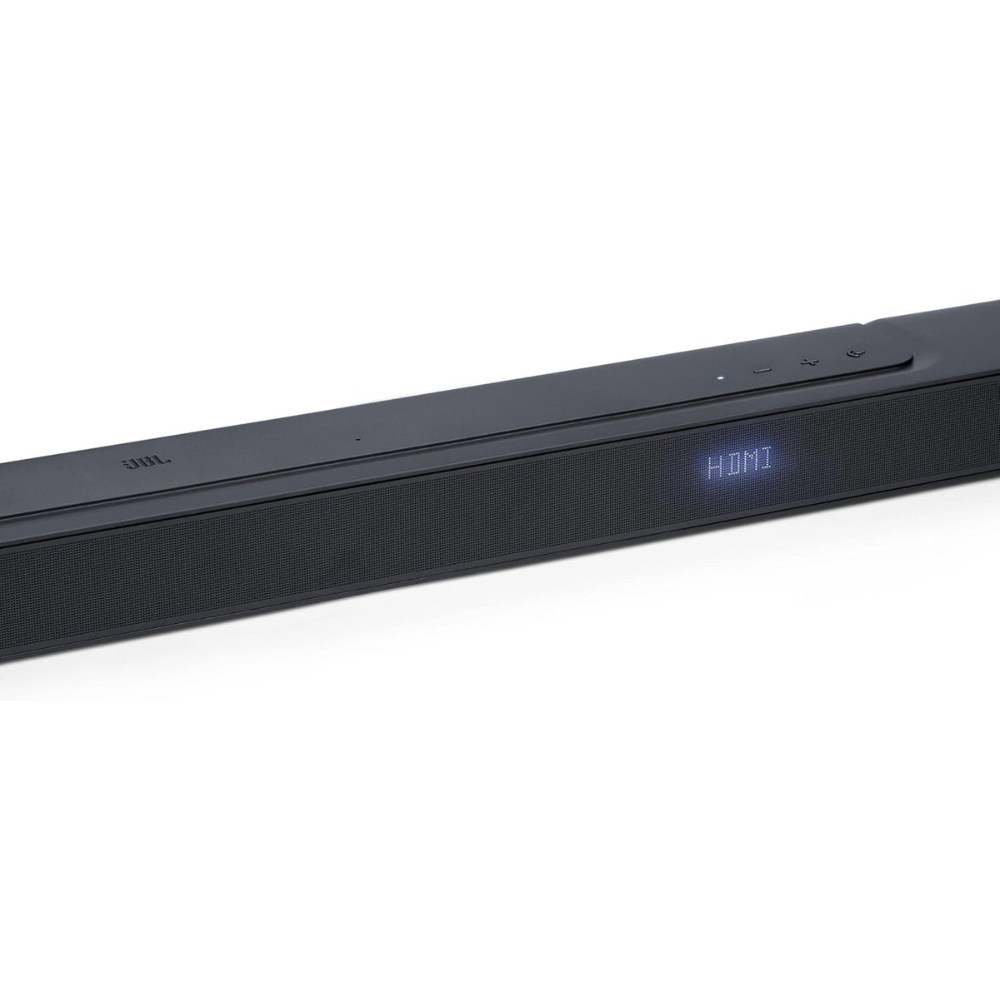

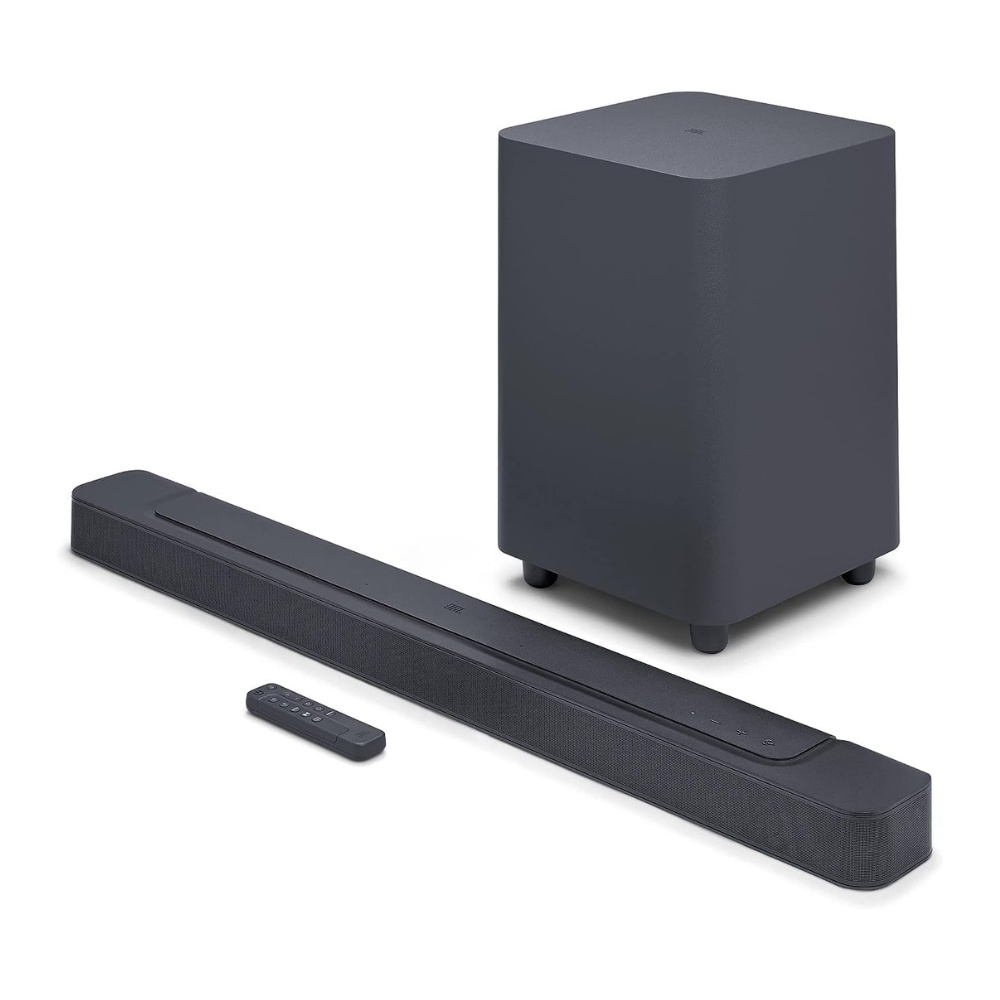

JBL Bar 500 5.1 Channel Soundbar with Wireless Subwoofer

Dolby Atmos® and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers

590W output power

With 590 watts of total system output power, the JBL Bar 500 transforms your movies, music and games into immersive sound experiences

Specs

General Specifications

Power supply 100 – 240V AC, ~ 50/60Hz

Networked standby power < 2.0 W

Operating temperature 0°C – 45 °C

Audio Specifications

Total speaker power output (Max @THD 1%) 590W

Soundbar output power (Max @THD 1%) 290W

Subwoofer output power (Max. @THD 1%) 300 W

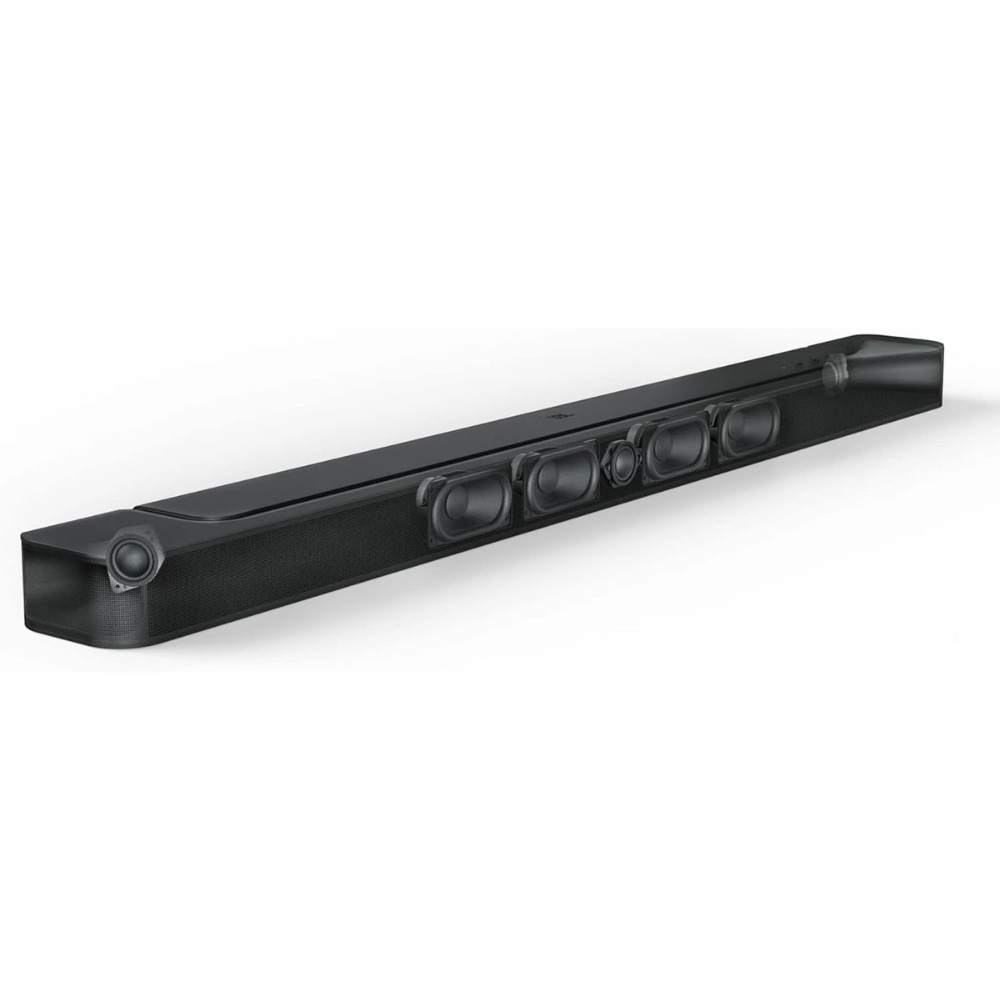

Soundbar transducer 4x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters

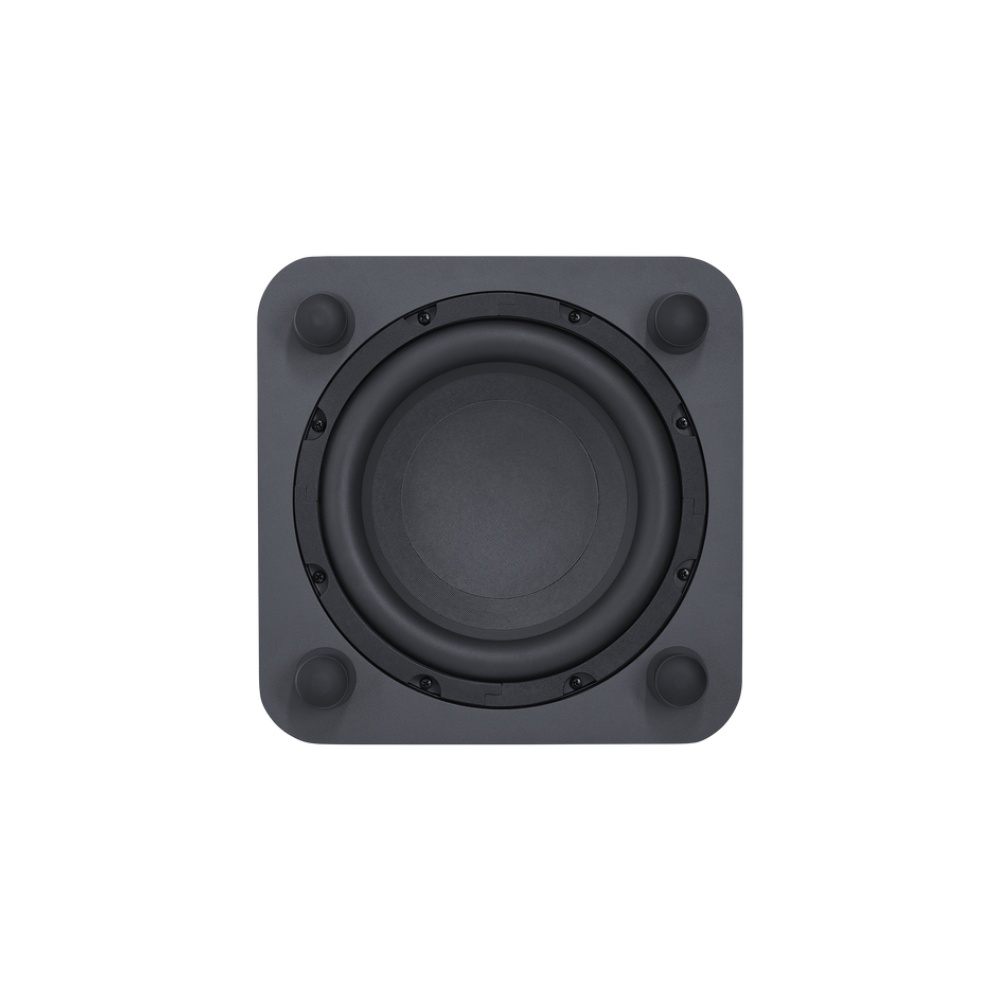

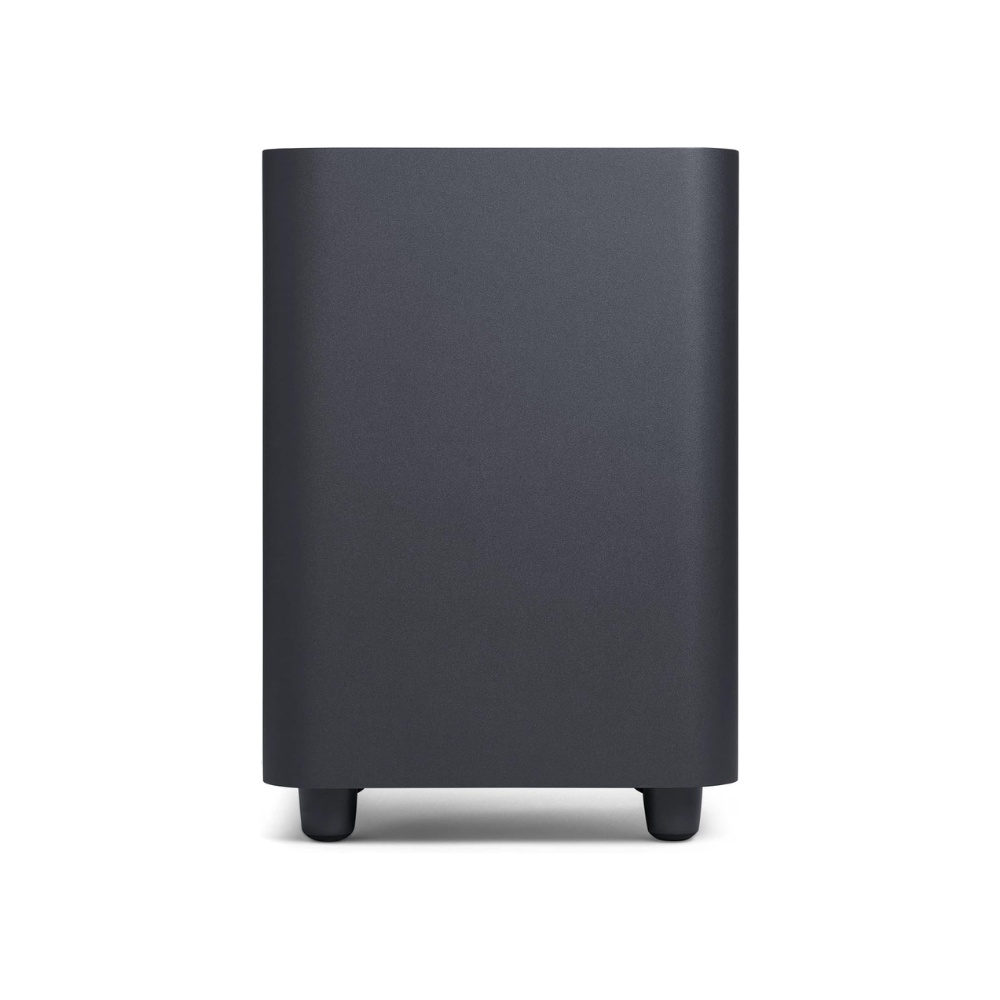

Subwoofer transducer 10” (260mm)

Frequency response 35Hz – 20kHz (-6dB)

Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

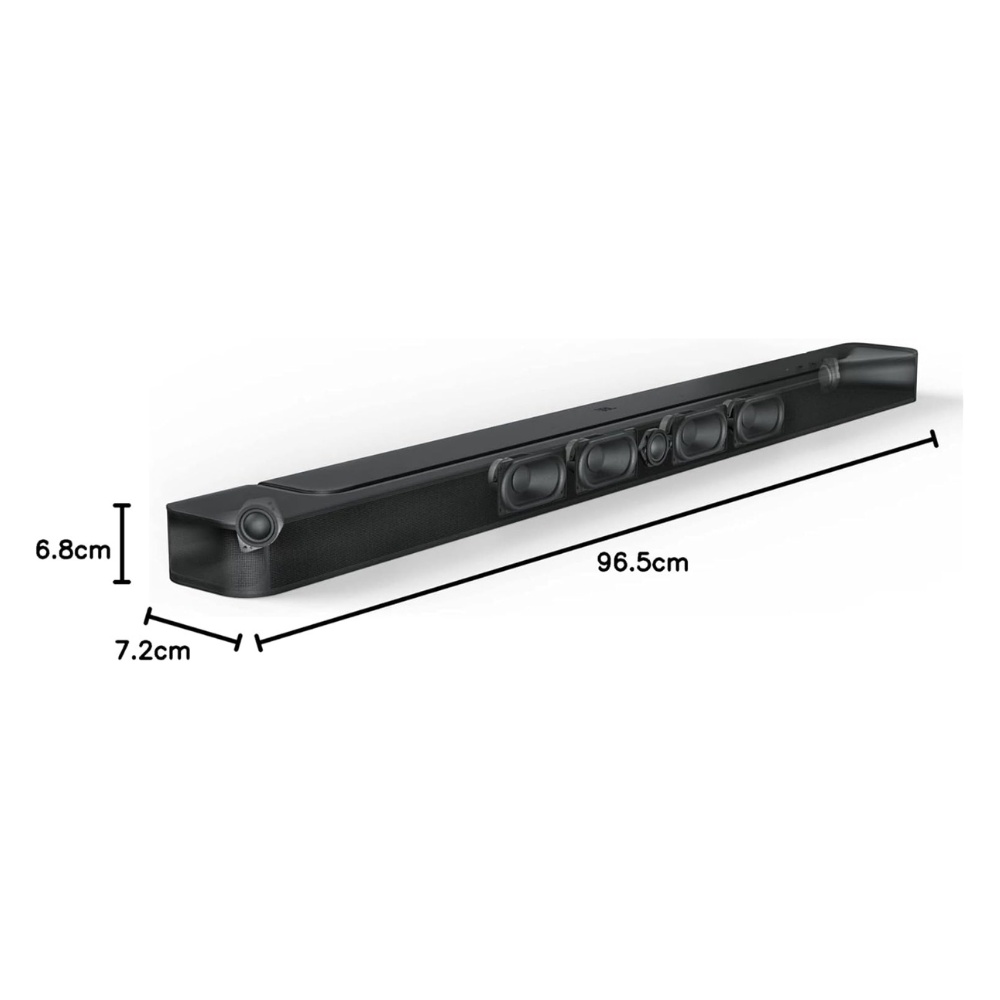

Soundbar dimensions (W x H x D) 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’

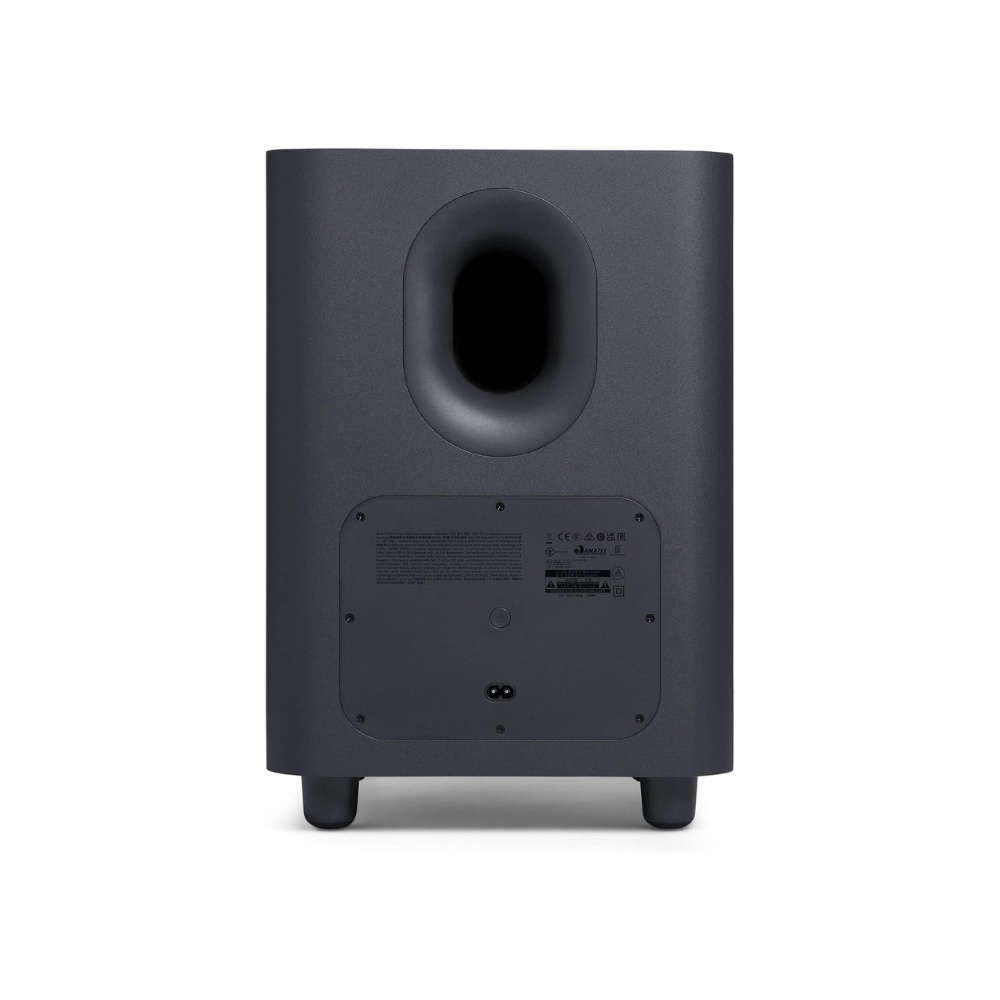

Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″

Soundbar weight 2.8kg/ 6.2 lbs

Subwoofer weight 10 kg / 22 lbs

Packaging dimensions (W x H x D) 1105 x 370 x 475 mm/ 43.5″ x 14.6″ x 18.7″

Packaging Weight 16.2 kg / 35.6 lbs

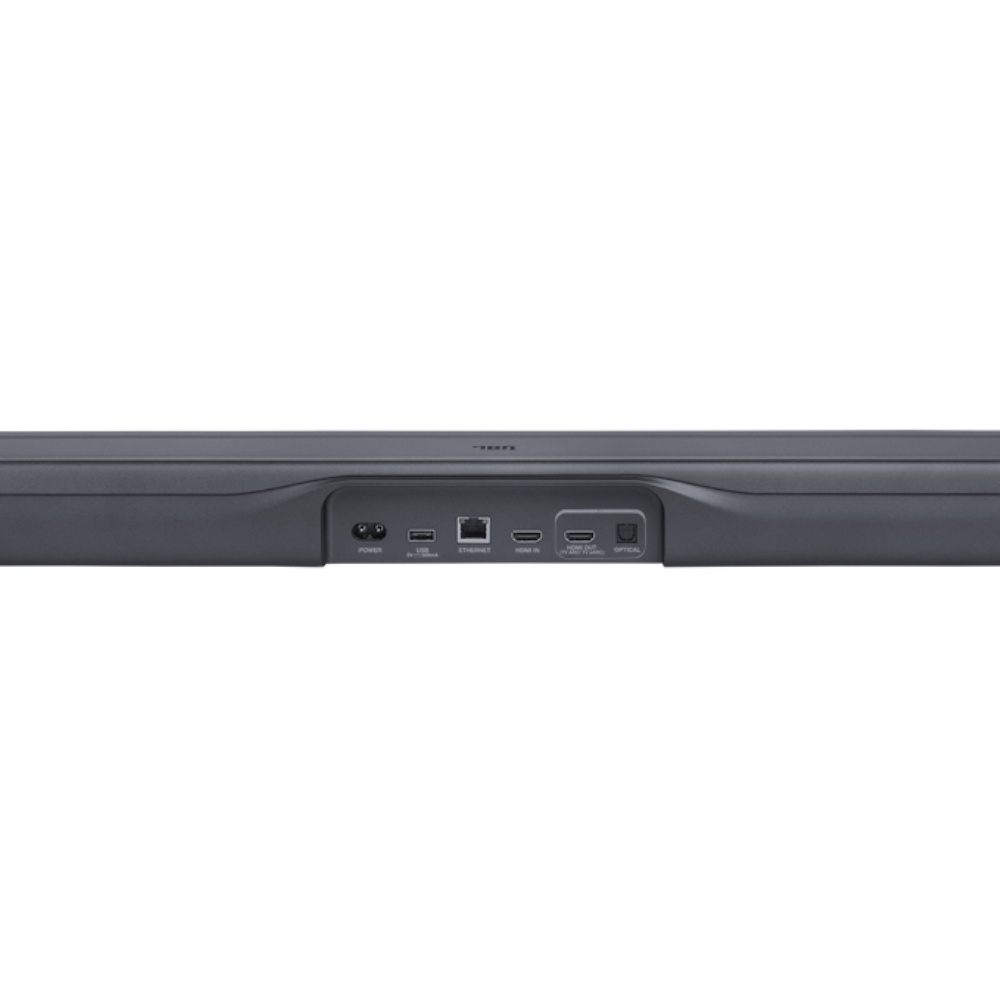

Control and Connection Specifications

USB port Type A

USB rating 5V DC, 0.5A

Supporting file format MP3

MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate 16 – 48 kHz

MP3 bitrate 80 – 320 kpbs

Bluetooth version 5.0

Bluetooth profile A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range 2400 MHz – 2483.5 MHz

Bluetooth transmitter power <15 dBm (EIRP)

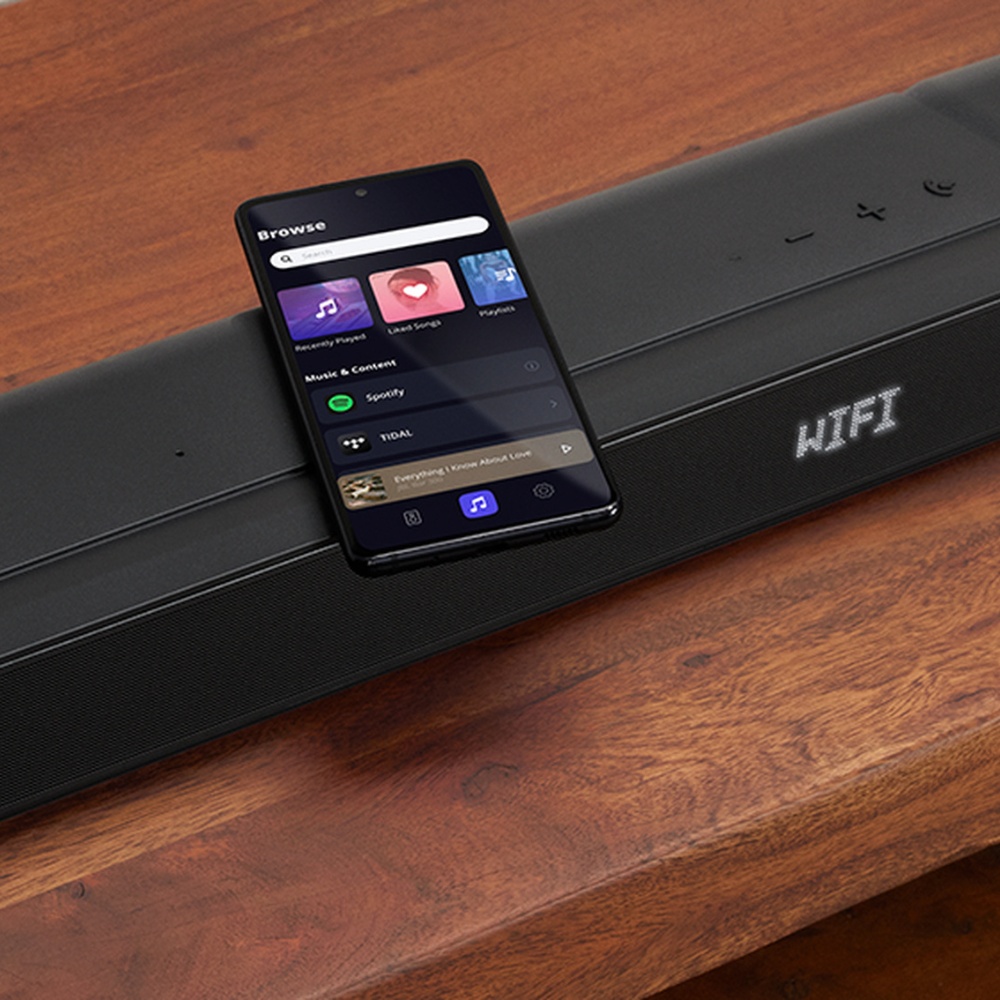

Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power < 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range 2406 – 2474MH

2.4G wireless transmitter power ＜10dBm (EIRP）

Video Specifications

HDMI video input 1

HDMI video output (with Enhanced Audio Return Channel, eARC) 1

HDMI HDCP version 2.3

HDR pass through HDR10, Dolby Vision

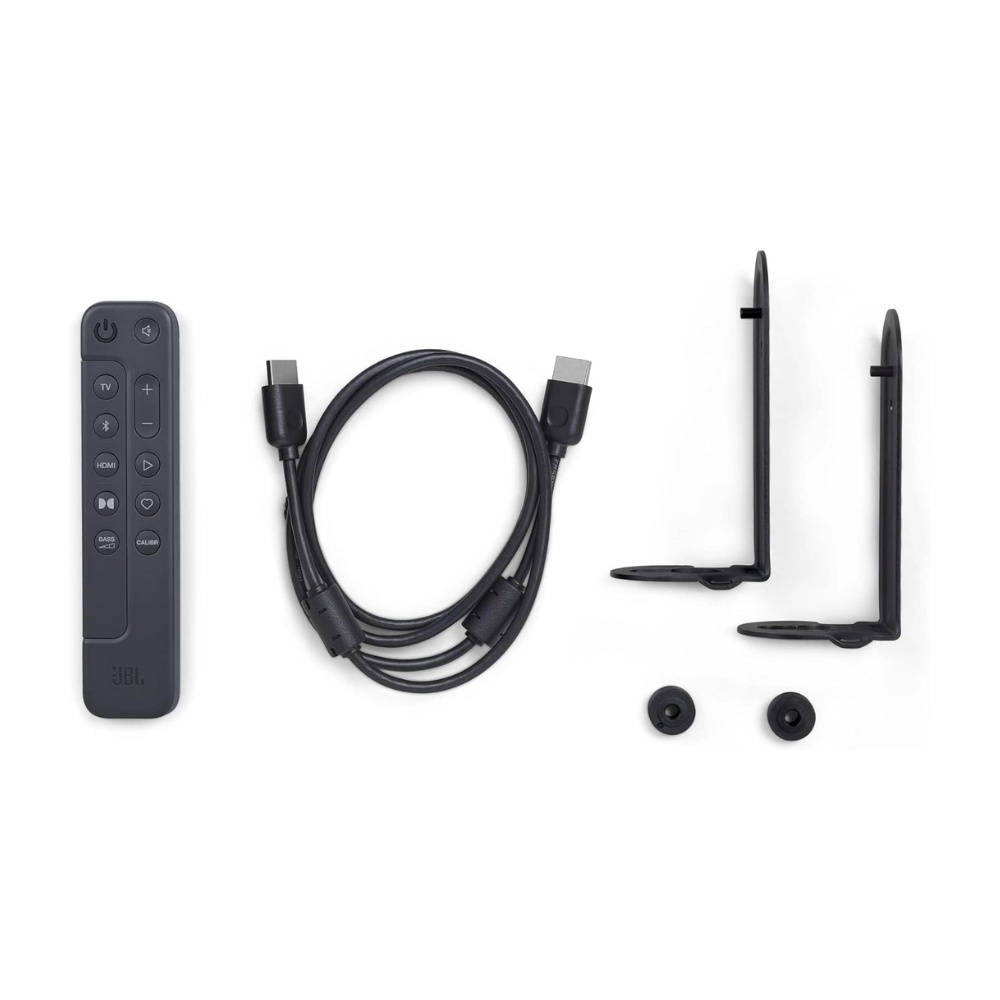

What’s in The Box?

1 x Main Soundbar

1 x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket with screws

Quick start guide

Safety Instruction and Warranty Card

Wall mount template
