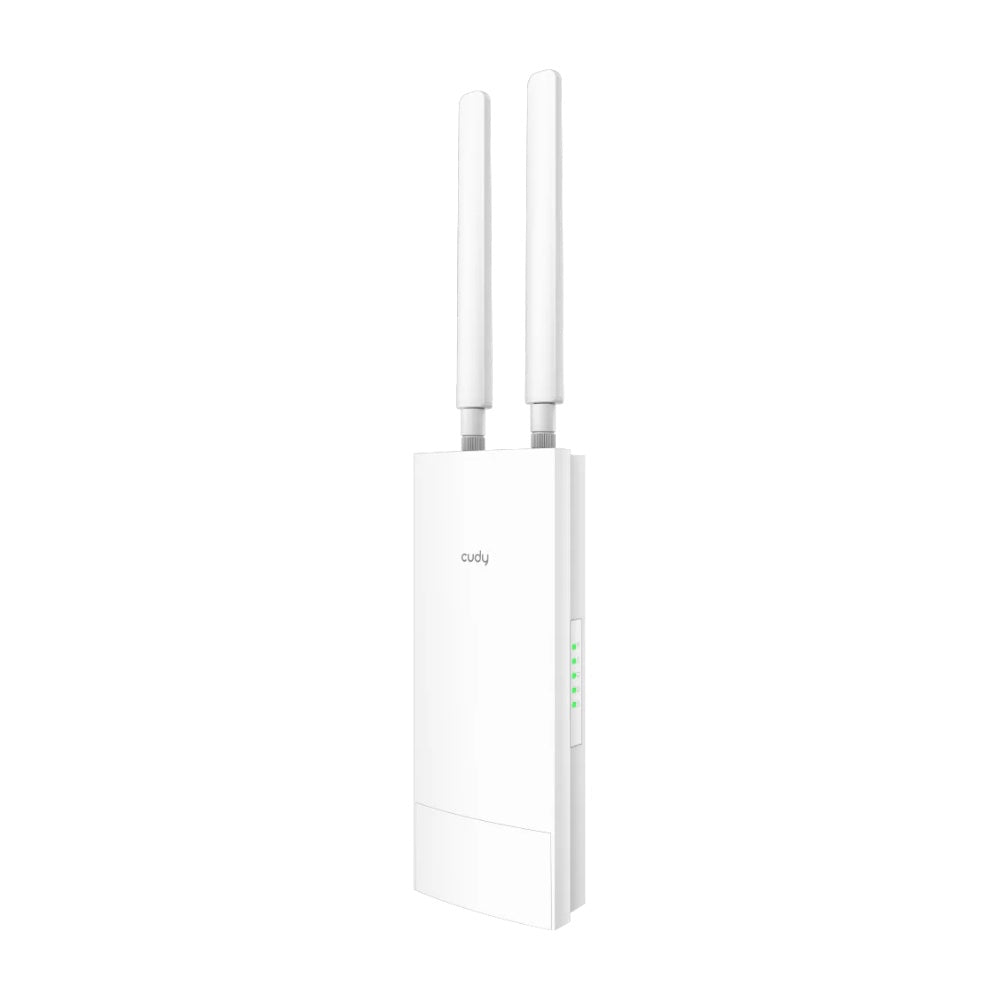

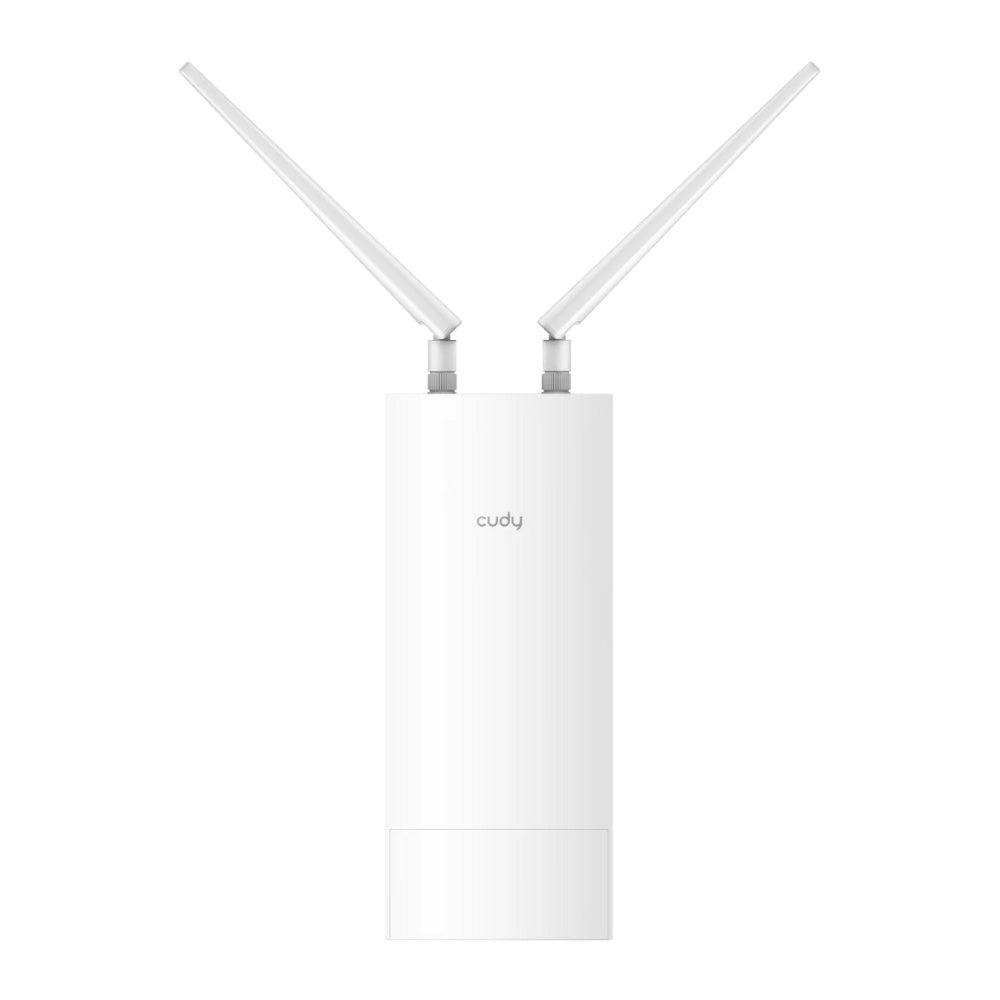

Cudy Indoor Outdoor AC1200 WiFi Access Point AP1300

$59
In stock!

Product Description

  • IP65, -40~65°C (-40~149°F), 4kV Surge
  • 4-Stream Dual-Band Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi
  • 1× Shielded GbE PoE In
  • 802.3at/af, Passive PoE
  • Watchdog, Schedule Reboot
  • Max 170 m (550 ft) Range
  • 100 Connected Devices

Specs

Model Version AP1300 Outdoor 1.0
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Detachable
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming True
Range Performance Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 50 m (164 ft)
Woods: 30 m (98 ft)
Wall Performance NA

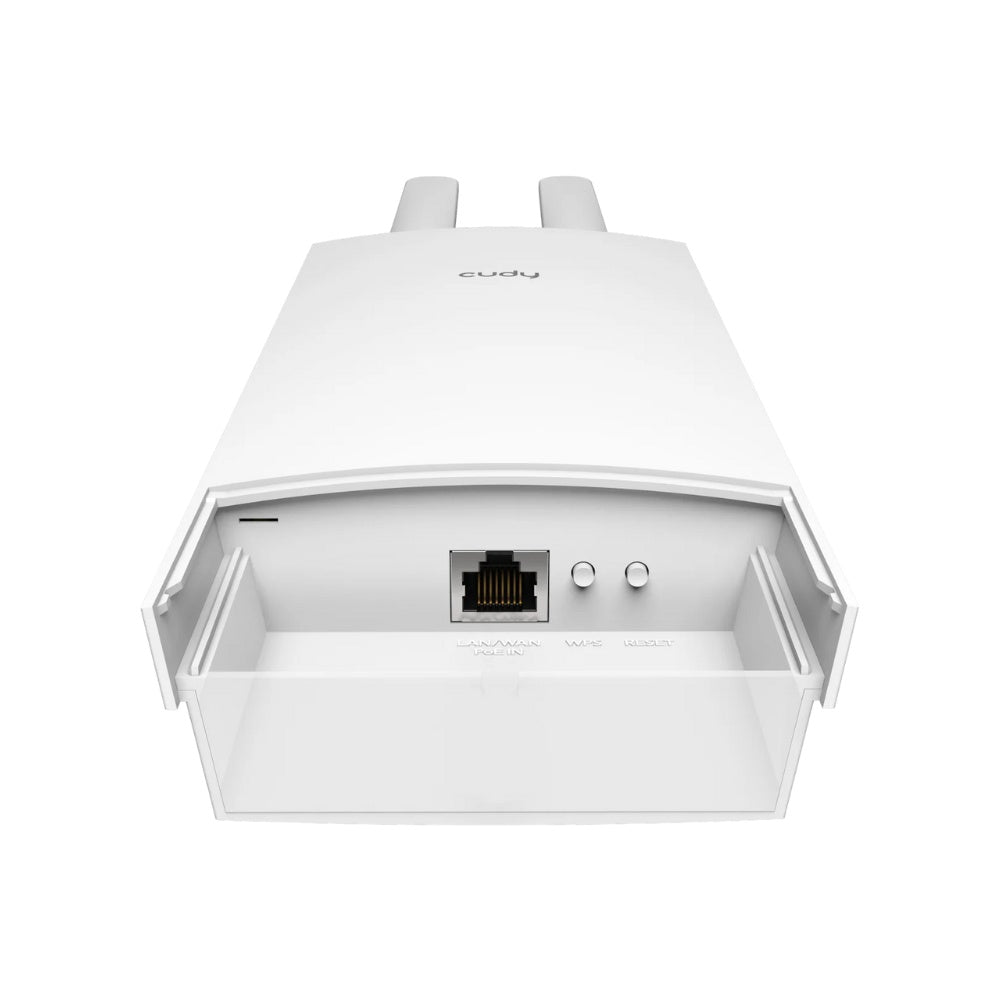

Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED
  • 5 GHz Wi-Fi
  • 2.4 GHz Wi-Fi
  • LAN
  • Internet
  • System
Physical Buttons Reset Button
Power Input PoE via Ethernet Port
Power Power Methods
  • 802.3at/af PoE
  • Passive PoE
Passive PoE Input 24 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 11 W
Idle Power Consumption (W) 7.5 W
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE
Mechanical Installation
  • Wall-mount

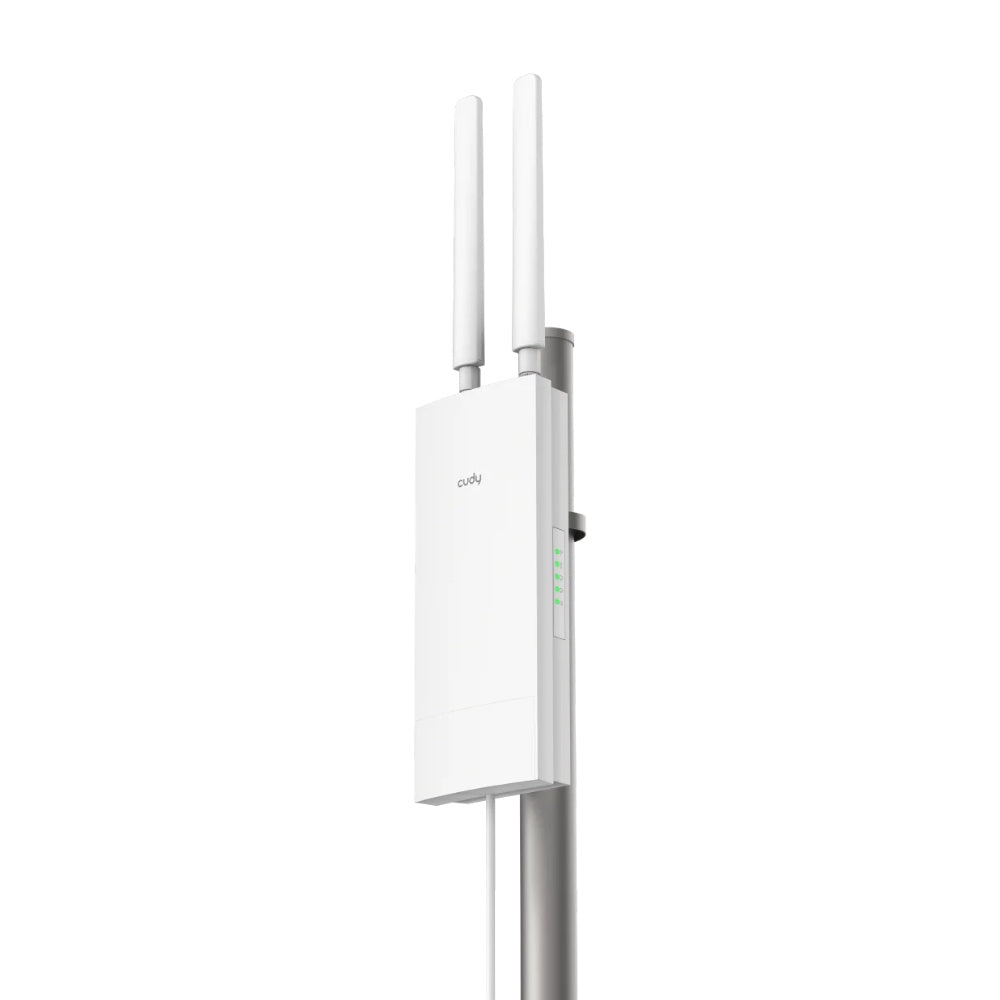

  • Pole-mount
Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches

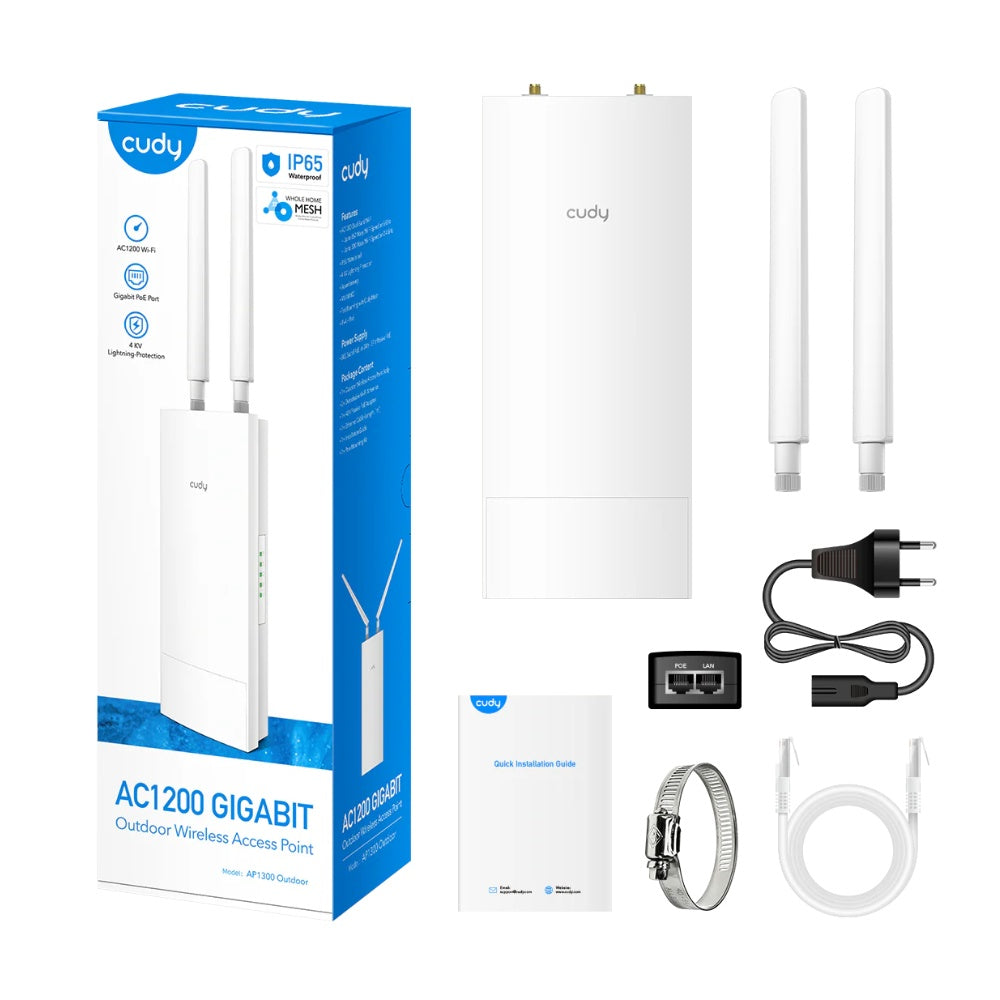

Package Content
  • AP1300 Outdoor
  • Detachable Antennas
  • PoE Adapter
  • Power Cord
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
