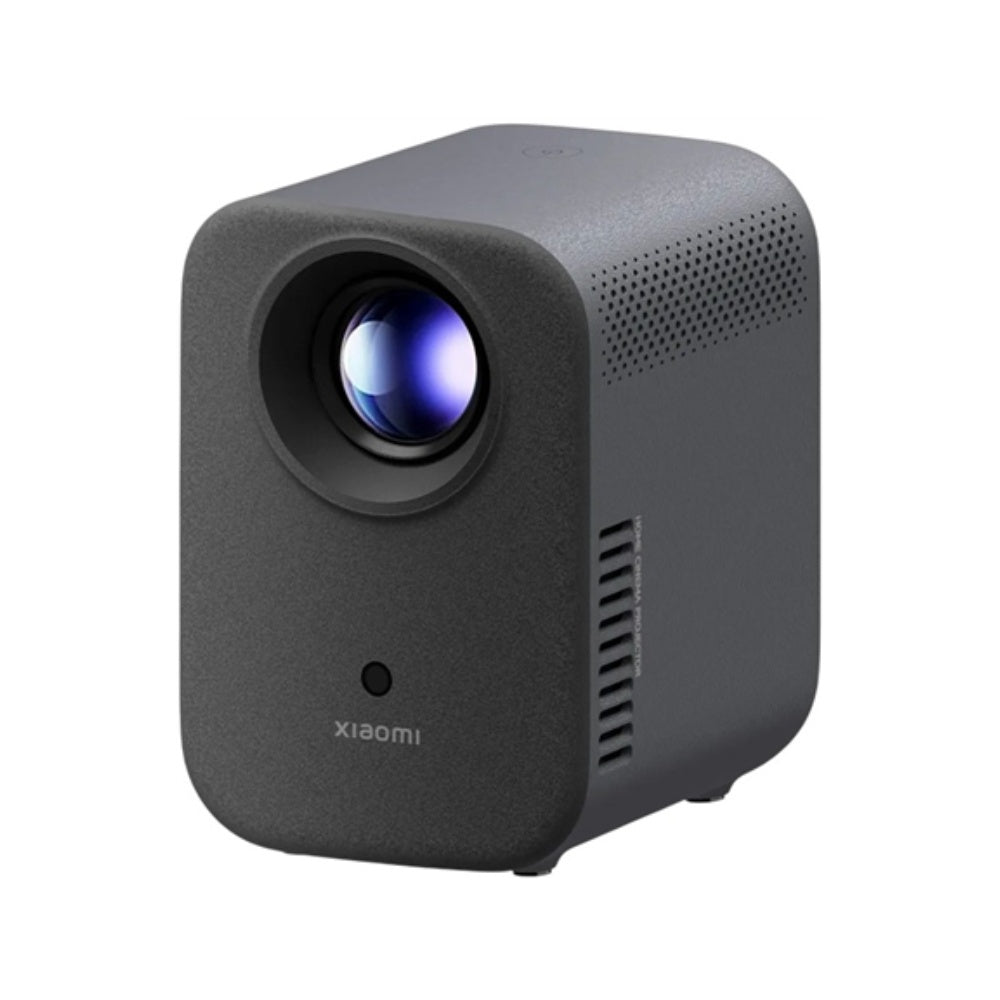

Xiaomi Smart Projector L1

Specs

Basic Information

• Name Xiaomi Smart Projector L1
• Model XMTYY03FMG
• Items Dimensions 118 × 142 × 176mm
• Weight 1.2kg

Display

• LCD Brightness 200 ISO Lumens
• Resolution 1920 × 1080P
• Throw Ratio 1.2:1 Screen
• Dimensions 40"～120"(Recommend: 60"-100")
• Focus Auto Focus
• Auto Keystone Correction
• Intelligent Obstacle Avoidance
• Support Intelligent Screen Alignment
• Support Projection Method Forward, Side, Overhead (15°)

Hardware

• Processor MT9630 high-performance chip platform
• Built-in Storage 2 GB DDR3 / 16 GB eMMC

System

• System Android TV™ OS
• Mirroring Display
• Google Cast
• Bluetooth 5.0
• Wireless Connectivity Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 GHz/5 GHz

Speaker & Audio

• Audio Effects Dolby Audio Speaker 3W full-range × 2

Electrical

• Rated power ≤ 72.0W
• Standby Power ≤ 0.50W
• Auto power off
• Support Input 19.0V ⎓ 3.79A
• Noise ≤ 30 dB (A) (Theater mode at an ambient temperature of 25°C)
• Storage Temperature / Humidity -20℃ to 55℃ ≤ 90%RH
• Operating Temperature / Humidity 0℃ to 40℃ / 20% RH–80% RH

Package Contents

• Projector x1
• Remote control x1
• Power adapter x1
• Power cable x1
• User manual
